Preface

I need to do a lot of end-to-end testing, but I am not really happy with the tools.

So I wrote a new test framework … *sigh*.

I’d rather I didn’t, but it actually adresses shortcomings I see with the tools that I use daily.

So let’s have a look at what’s missing…

Need 1: Better way to write end-to-end tests

The way I write tests sucks…

Gherkin intro

🫶🏻 Gherkin fully decouples test code from implementation, has been useful many times for me.

This is Gherkin syntax from the source:

Feature: Guess the word

  # The first example has two steps
  Scenario: Maker starts a game
    When the Maker starts a game
    Then the Maker waits for a Breaker to join

  # The second example has three steps
  Scenario: Breaker joins a game
    Given the Maker has started a game with the word "silky"
    When the Breaker joins the Maker's game
    Then the Breaker must guess a word with 5 characters

Notes on how I use Gherkin

My scenarios intentionally are NOT following the Gherkin recommendation (because the user is a machine)
we don’t have business people writing the scenarios.

Using Gherkin in my projects: Example

Feature: Device Messages

  Devices can publish arbitrary messages on the /messages topic and that
  the messages can then be queried in Timestream.

  Background:

    Given I am run after the "Device: Update Shadow" feature

😭 not well solved by Gherkin: dependency on other Feature

Device sends a message

  Scenario: Devices publishes that an impact was detected

    Given I store "$millis()" into "ts"
    Then the tracker publishes this message to the topic {tracker:id}/messages
      """
      {
        "impact": {
          "v": {magnitude},
          "ts": {ts}
        }
      }
      """

😭 not well solved by Gherkin: low level API calls

Web app can retrieve message

    Given I am authenticated with Cognito
    When I run this Timestream query
      """
      SELECT measure_value::double AS value
      FROM "{historicaldataDatabaseName}"."{historicaldataTableName}"
      WHERE deviceId='{tracker:id}'
        AND measure_name='impact'
        AND measure_value::double IS NOT NULL
      ORDER BY time DESC
      """
    Then "timestreamQueryResult" should match this JSON
      """
      [
        {
          "value": {magnitude}
        }
      ]
      """

😭 not well solved by Gherkin: eventual consistency

Run entire features multiple times

because it improves readability (needed because Note 1), and because of per-Scenario retries

Feature: nRF Cloud Cell Geolocation

    Contexts:

    | nw    |
    | ltem  |
    | nbiot |

    Scenario: Query the cell

        Given I store "$millis()" into "ts"
        When I GET /cell?cell={cellId}&area=30401&mccmnc=24201&nw=<nw>&ts={ts}

😭 not well solved by Gherkin: Gherkin only has examples per scenario

Let’s improve Gherkin: BDD Markdown

github.com/NordicSemiconductor/bdd-markdown-js

Dependencies
Comments
Formatted code
Context
Asynchronous results
~~Retries~~

Supported syntax

Dependencies

---
needs:
  - First feature
---

# Second

## Scenario

Given this is the first step

Comments

# Example feature

> This is a description for the feature.

<!-- Comments on separate lines are supported. They will be associated with the following keyword. -⟶

## The first scenario

Formatted code

## Verify that a webhook request was sent using the REST client

When I POST to `${webhookReceiver}/hook` with this JSON

```json
{ "foo": "bar" }
```

Contexts

---
contexts:
  - nw: ltem
    nw-modem: LTE-M
  - nw: nbiot
    nw-modem: NB-IoT
---

Make eventual consistent behaviour first party citizen

## Scenario Outline: Move the rover backward

Given I have a Mars Rover

When I set the initial starting point to `0,0`

And I set the initial direction to `${direction}`

And I move the Mars Rover `backward` 1 square

Soon the current position should be `${x},${y}`

### Examples

| direction | x   | y   |
| --------- | --- | --- |
| N         | 0   | 1   |
| S         | 0   | -1  |
| E         | -1  | 0   |
| W         | 1   | 0   |

Retries

⚠ Update! This turned out to be a bad idea!

🤯 Instead, let steps decide on retry behaviour.

---
# Configure the retry settings for the entire feature
retry:
  tries: 10
  initialDelay: 250
  delayFactor: 2
---

# To Do List

<!-- This @retry:tries=5 applies to all steps in the scenario. -⟶

## Create a new todo list item

Given I create a new task named `My item`

<!-- This @retry:tries=3,initialDelay=100,delayFactor=1.5 applies only to the next step. -⟶

Soon the list of tasks should contain `My item`

Bonus: Integrate Markdown with GitHub Actions

Need 2: I need architecture diagrams

Understanding a system purely from tests doesn’t work
Manually creating architecture diagrams works, but maintaining is a mess

Example: Backend Architecture diagrams using C4 and Miro

c4model.com

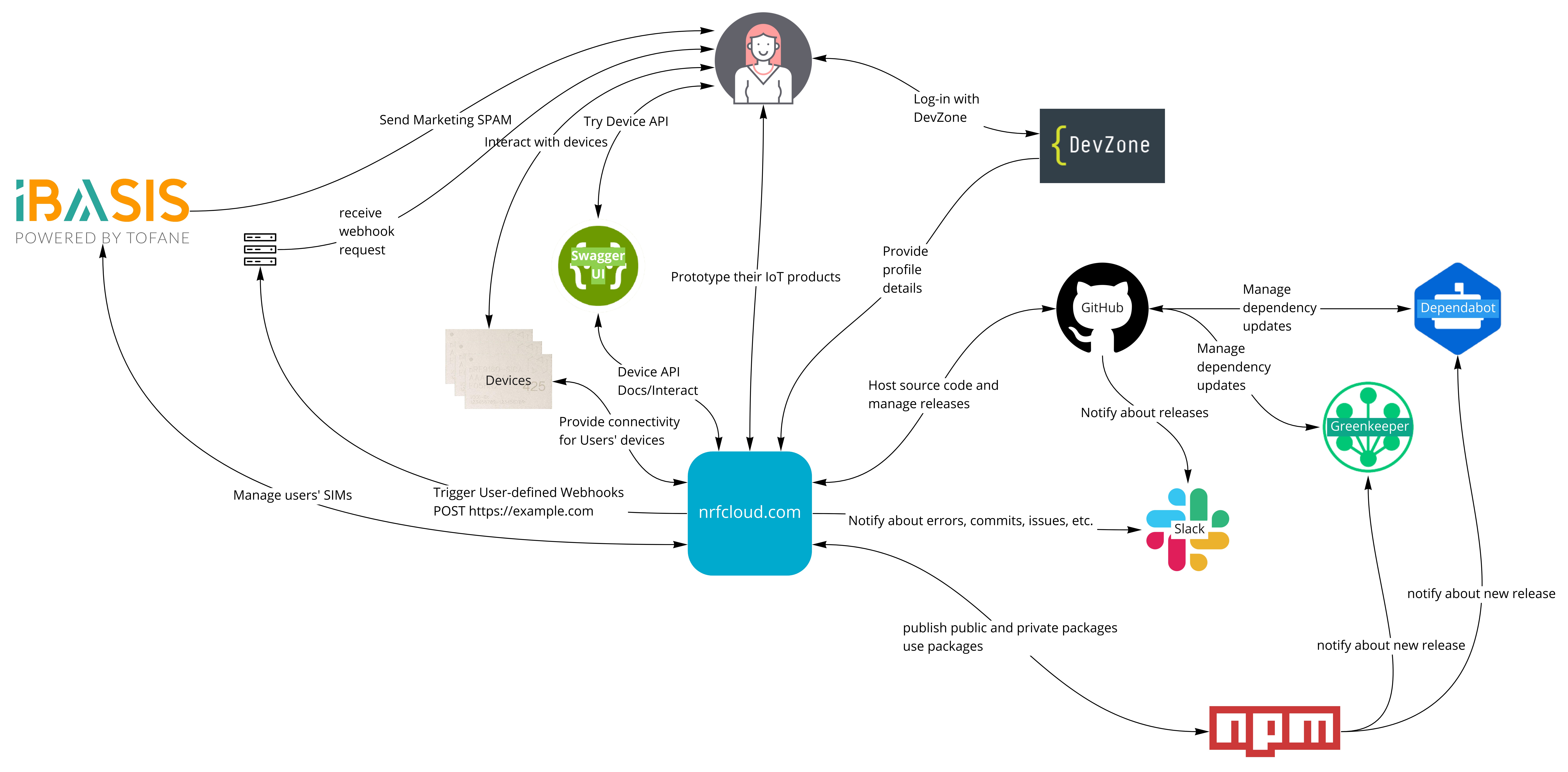

System Context Diagram

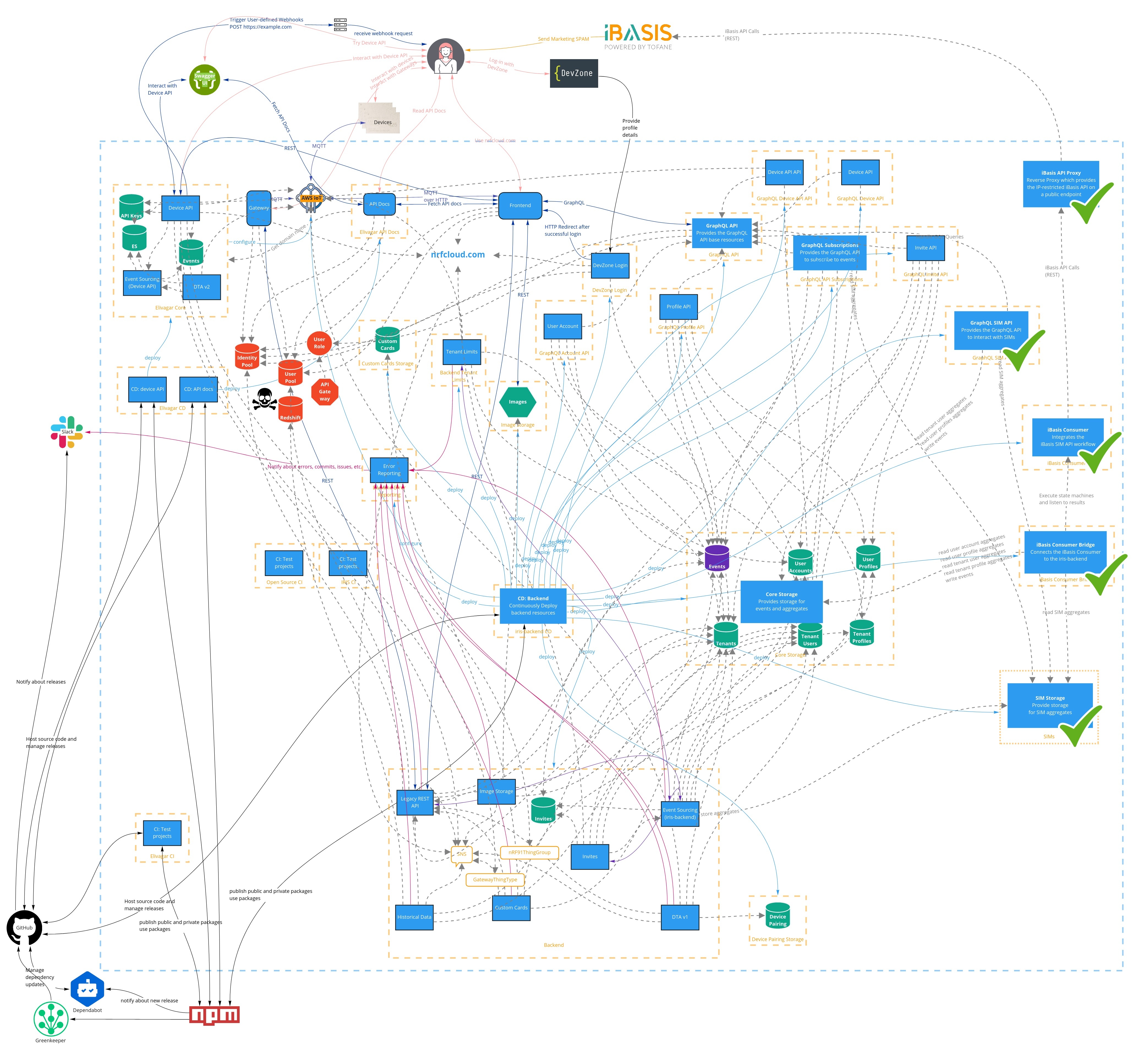

Container Diagram

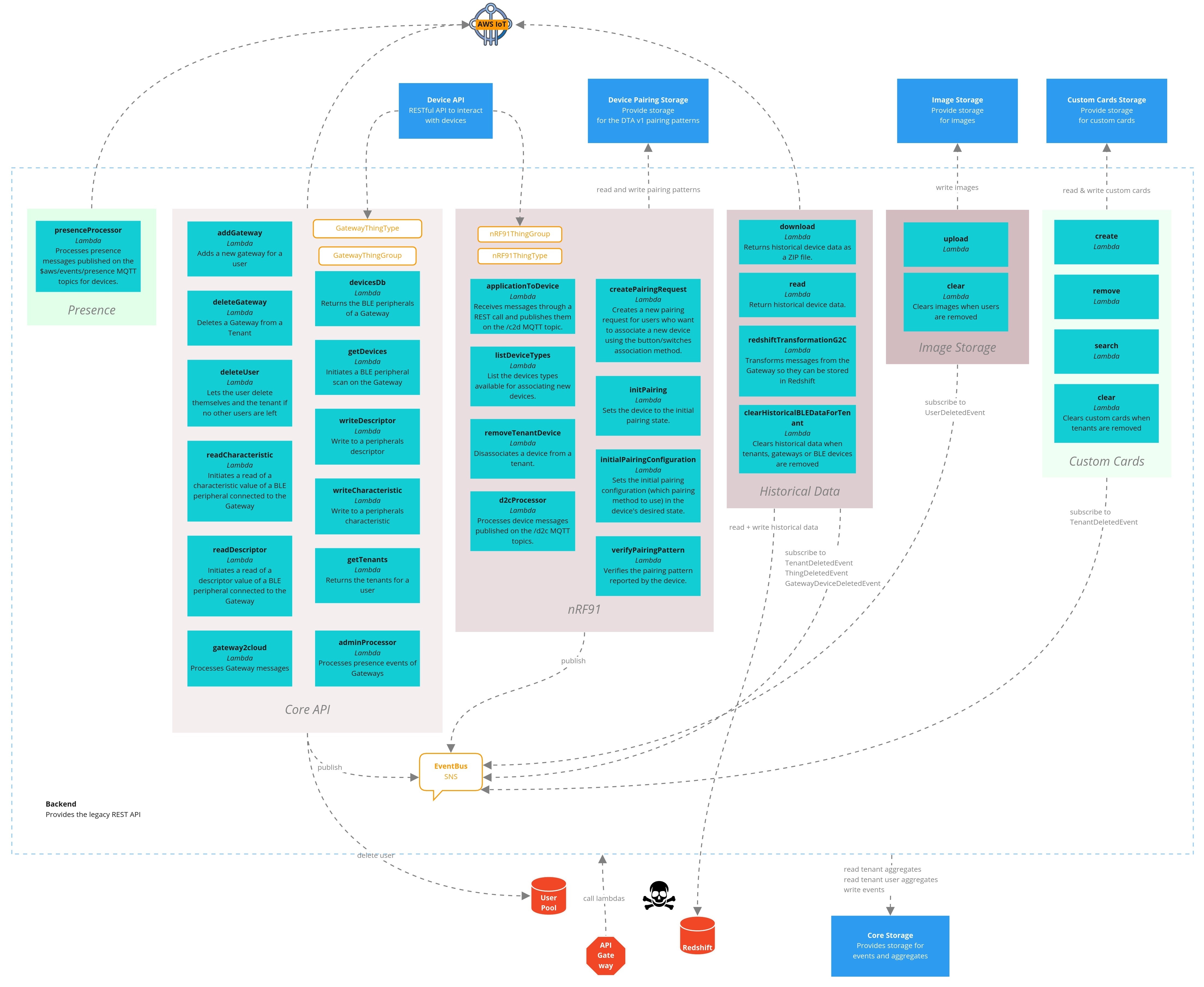

Component Diagram

Problems

Hard to build
even harder to maintain
static

Let’s automate this!

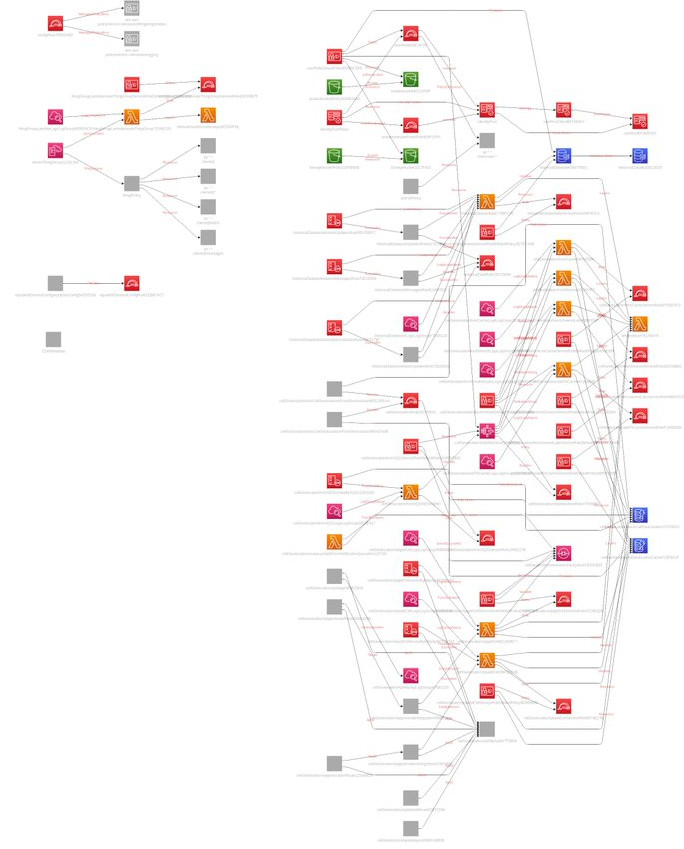

I’ve generated an architecture diagram of one of the stacks in this solution

Result

It shows that

auto-generating diagrams is pretty useless
a lot of the “magic” of AWS solutions is in the configurations and typical architecture diagrams are bad at visualizing this.

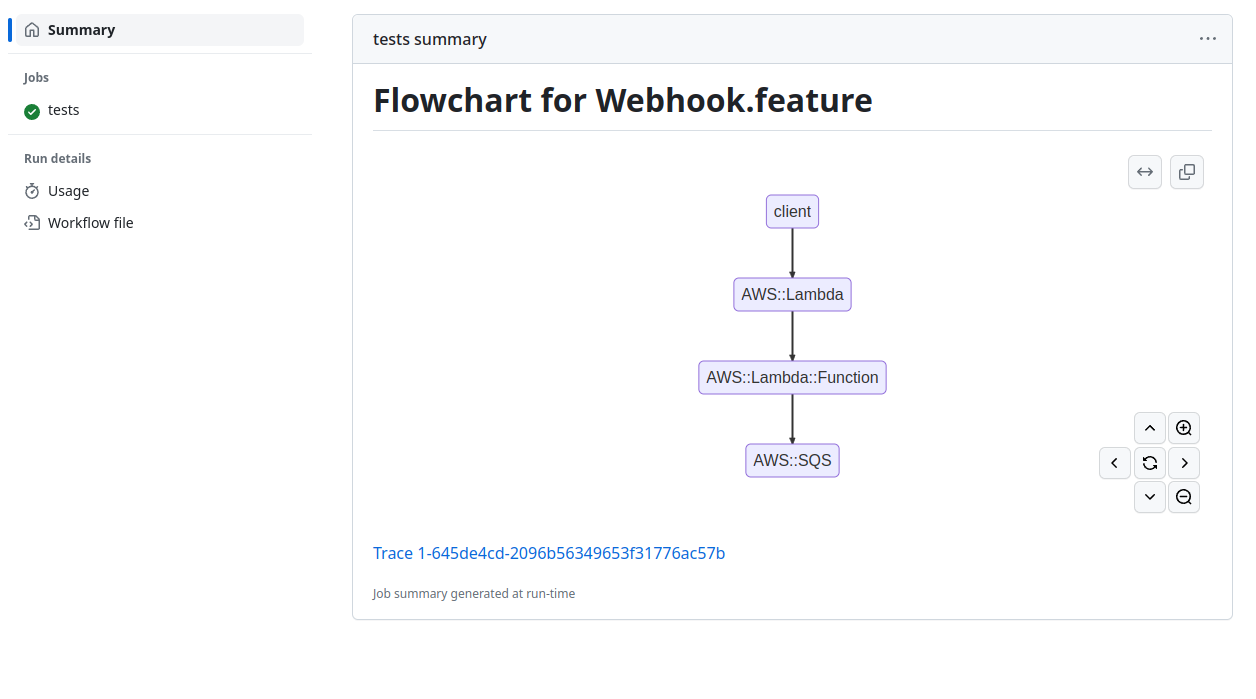

Solution: Create from test runs

Generate architecture diagrams from test runs

The Future? Combine everything in one UI!

Interactive Feature and Architecture Explorer™

Put the flow of events first!
We understand systems from how they behave, not how they are constructed.
Filter by feature ⟶ show only the components and events used
Filter by component ⟶ which features use this component?
- Which features have a lot of overlap in component usage
Inventory of all events ⟶ filter events that include e.g. an email, which components are used?

The sky is the limit

… if we start improving the tools that we use to get our work done.
