Serverless Architecture for IoT on AWS

Markus Tacker

Senior R&D Engineer, Nordic Semiconductor, Trondheim

Software crafter. Code donor. Mentor. Speaker. Conference & Community builder. Camper.

@coderbyheart

Pronouns: he/him

My work at Nordic Semiconductor

2017

First full time cloud engineer working on nrfcloud.com building Software-as-a-service (Saas) offering.

2019

Application Group to work on on open-source end-to-end examples of real world IoT products.

Agenda

What is IoT?
- Protocols for the Internet of Things.
What is serverless?
- Why I like serverless
- Downsides of serverless
AWS Lambda explained.
IoT <3 serverless

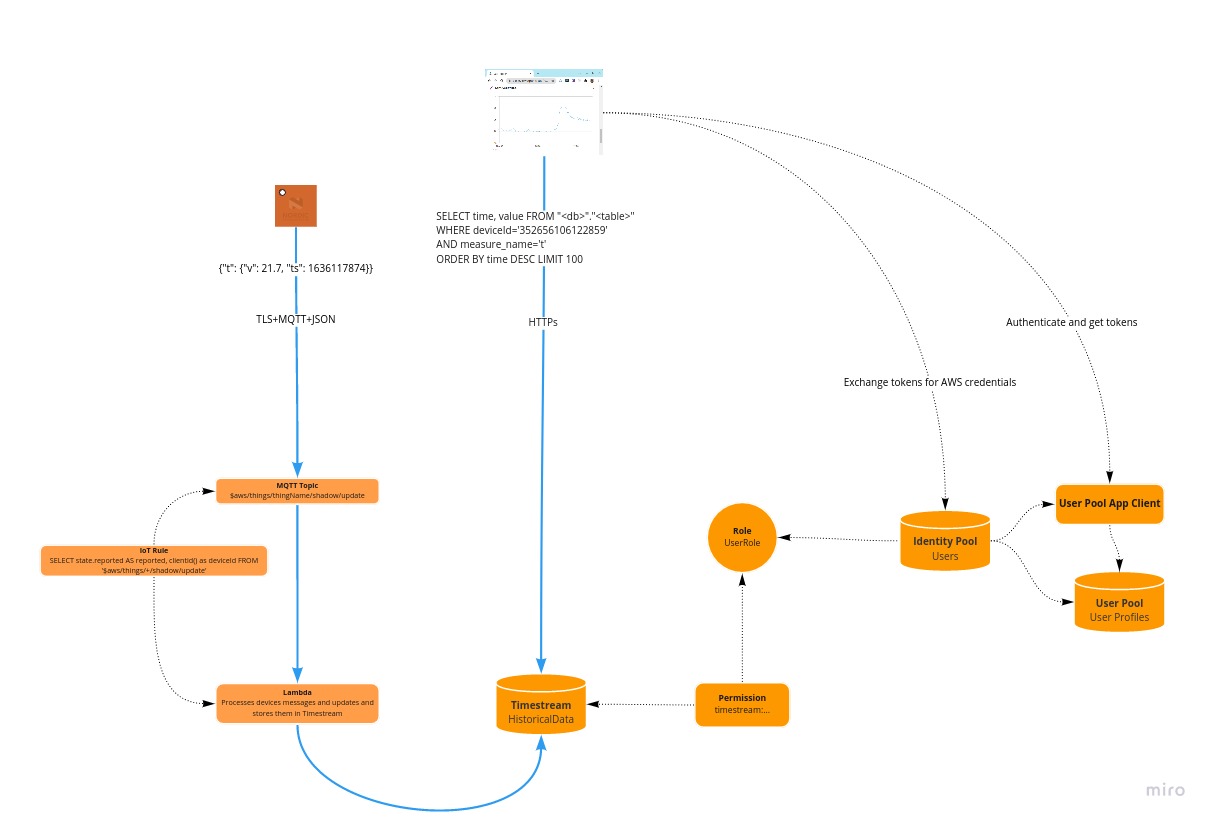

- Architecture Example:
  store and retrieve temperature data
Learning resources

What is IoT?

Computing devices (things) connected to the internet
either through a gateway (PC, phone)
or directly, using cellular IoT (wireless radio)

Benefits of IoT

Enable new aproaches to conserve and protect resources and make smarter, real-time data-driven decisions.

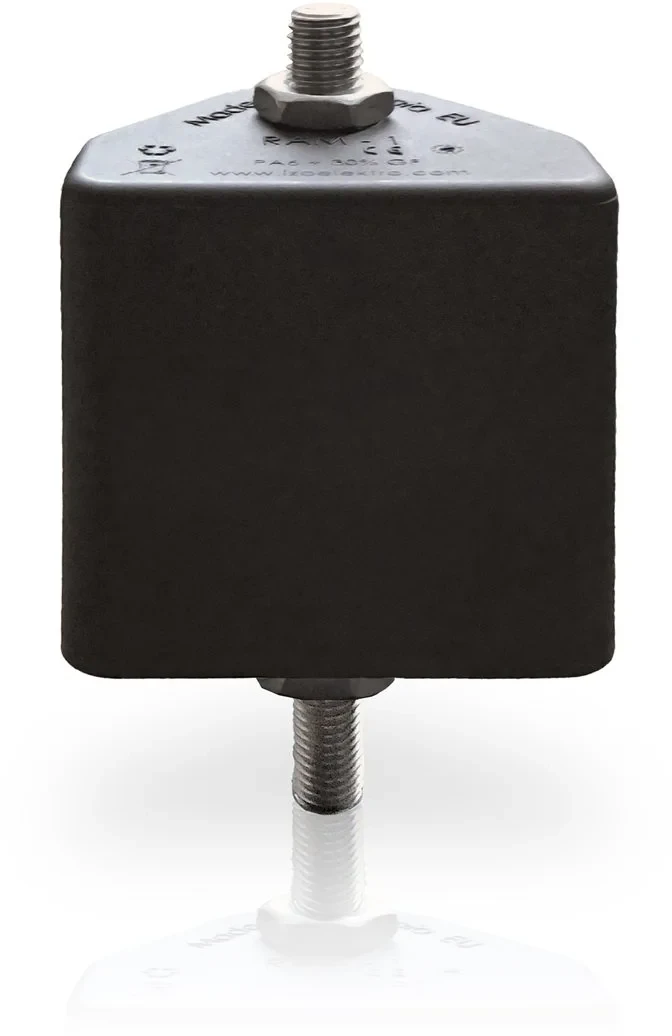

Power transmission tower which detects failures and allows to react immediately and prevent for example wildfires cause by electrical fire.

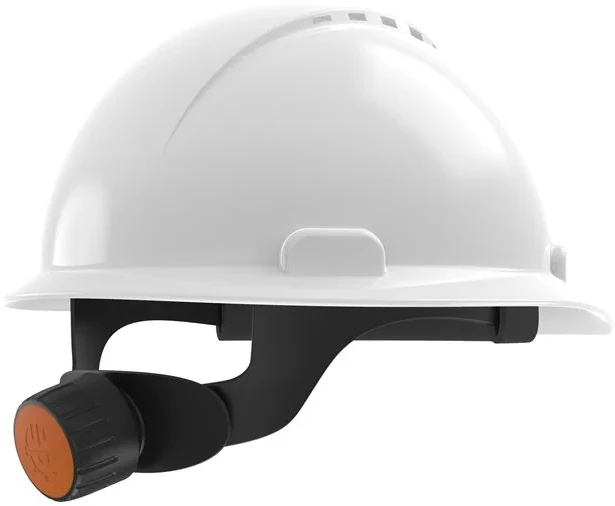

Hard hat sensor locates wearer across large sites and reports activity/incidents.

Protocols for the Internet of Things

ultra shortrange: cm (NFC, …)
shortrange: m (Bluetooth, Zigbee, WiFi, …)
long range: km (LoRa, LTE, …)

Wireless radio protocols

375 kbps downlink, 300 kbps uplink
~100 kbps application throughput running IP
supports roaming (same as LTE)
typically uses frequency bands above 2 Ghz
ms-latency

60 kbps downlink, 30 kbps uplink
typically uses frequency bands below 2 Ghz
no roaming support (some Telcos do offer custom solution)
good indoor/underground penetration characteristics
long range

Comparison

LTE-M

for medium throughput applications requiring low power, low latency and/or mobility

asset tracking
wearables
medical
POS
home security

NB-IoT

for static, low throughput applications requiring low power and long range

smart metering
smart agriculture
smart city

Application data

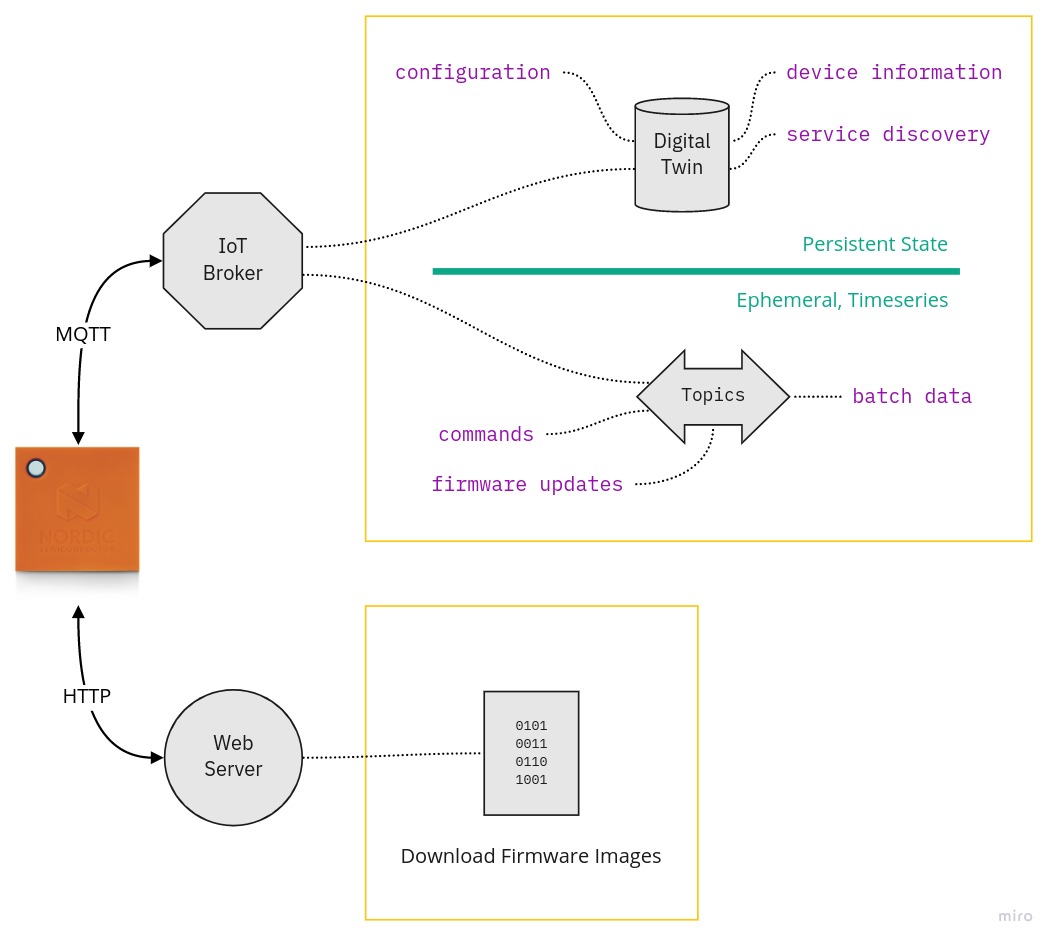

Typical IoT Data Protocol Configuration

The four kinds of data

Device State
Device Configuration
Past Data
Firmware Updates

1. Device State

sensor readings (like position, temperature)
information about its health (like battery level)

Because the latest state should be immediately visible: buffer data in a Digital Twin.

2. Device Configuration

change behaviour of device in real time (e.g. sensor sensititiy, timeouts)
configure physical state (e.g. locked state of a door lock)
cloud side owns device state (because the device may lose power and state)

Depending on the product we might also want to change the device configuration. This could on the one hand be use during development to tweak the aforementioned behavior using variables instead of pushing a new firmware over the air to the device. We observe firmware sizes of around 250 KB which will, even when compressed, be expensive because it will take a device some time to download and apply the updated, not to mention the costs for transferring the firmware update over the cellular network. Especially in NB-IoT-only deployments is the data rate low. Updating a fleet of devices with a new firmware involves orchestrating the roll-out and observing for faults. All these challenges lead to the need to be able to configure the device, which allows to tweak the behavior of the device until the inflection point is reached: battery life vs. data granularity. Interesting configuration options are for example the sensitivity of the motion sensor: depending on the tracked subject what is considered “movement” can vary greatly. Various timeout settings have an important influence on power- and data-consumption: the time the device waits to acquire a GPS fix, or the time it waits between sending updates when in motion.

On the other hand is device configuration needed if the device controls something: imaging a smart lock which needs to manipulate the state of a physical lock. The backend needs a way to tell the device which state that lock should be in, and this setting needs to be persisted on the backend, since the device could lose power, crash or otherwise lose the information if the lock should be open or closed.

Here again is the digital twin used on the cloud side to store the latest desired configuration of the device immediately, so the application does not have to wait for the device to be connected to record the configuration change. The implementation of the digital twin then will take care of sending only the latest required changes to the device (all changes since the device did last request its configuration are combined into one change) thus also minimizing the amount of data which needs to be transferred to the device.

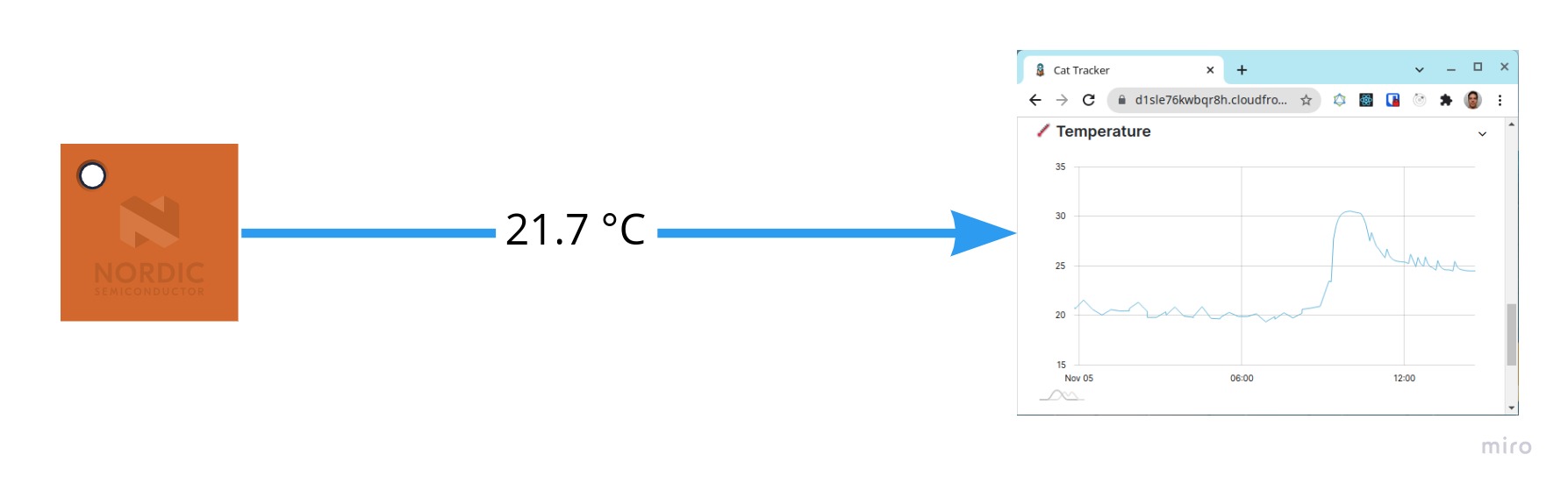

3. Past Data

Cellular IoT devices need to send data about past events: they will be offline most of the time.

Source

Imagine a reindeer tracker which tracks the position of a herd. If position updates are only collected when a cellular connection can be established there will be an interesting observation: the reindeers are only walking along ridges, but never in valleys. The reason is not because they don’t like the valley, but because the cellular signal does not reach deep down into remote valleys. The GPS signal however will be received there from the tracker because satellites are high on the horizon and can send their signal down into the valley.

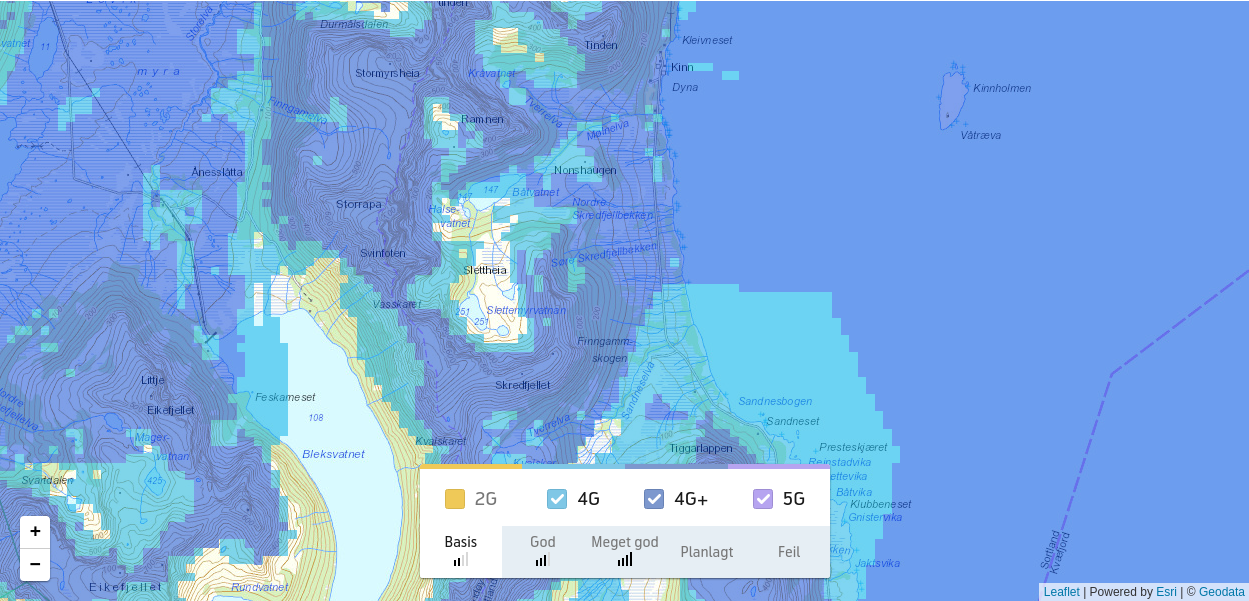

There are many scenarios where cellular connection might not be available or unreliable but reading sensors work. Robust ultra-mobile IoT products therefore must make this a normal mode of operation: the absence of a cellular connection must be treated as a temporary condition which will eventually resolve and until then business as usual ensues. This means devices should keep measuring and storing these measures in a ring-buffer or employ other strategies to decide which data to discard once the memory limit is reached.

Once the device is successfully able to establish a connection it will then (after publishing its most recent measurements) publish past data in batch.

On a side note: the same is true for devices that control a system. They should have built-in decision rules and must not depend on an answer from a cloud backend to provide the action to execute based on the current condition.

4. Firmware Updates

2-3 magnitudes larger than a control message (~250 KB)
notification via control channel (MQTT)
download via data channel (HTTP): less overhead, supports resume

Data protocols

JSON
Alternatives to JSON
- Protocol buffers
- Flatbuffers
- CBOR

JSON

{
  "v": {
    "lng": 10.414394,
    "lat": 63.430588,
    "acc": 17.127758,
    "alt": 221.639832,
    "spd": 0.320966,
    "hdg": 0
  },
  "ts": 1566042672382
}

“default” data protocol for IoT (AWS, Azure, Google Cloud)

👍 human readable
👍 schema-less (self-describing)

👎 overhead

Possible Optimizations

GPS location message

{
  "v": {
    "lng": 10.414394,
    "lat": 63.430588,
    "acc": 17.127758,
    "alt": 221.639832,
    "spd": 0.320966,
    "hdg": 0
  },
  "ts": 1566042672382
}

02 36 01 37 51 4b 73 2b
d4 24 40 09 68 06 f1 81
1d b7 4f 40 11 68 cd 8f
bf b4 20 31 40 19 e6 5d
f5 80 79 b4 6b 40 21 1a
30 48 fa b4 8a d4 3f 29
00 00 00 00 00 00 00 00
09 00 e0 cf ac f6 c9 76
42

JSON
114 bytes
without newlines

Protocol Buffers
65 bytes (-42%)
source

Protocol buffers

developers.google.com/protocol-buffers

send structured data in efficient binary format without overhead
message format can be changed (ammended) without breaking existing clients
small implementation for embedded devices exists: nanopb

In the comparison on the previous slide we showed how using Protocol Buffers can dramatically reduce the transferred data size, while keeping a typed message.

The implementation of Protocol Buffers is however quite big (for a resource constrained device like the nRF9160), and no official encoder/decoder implementation exists for C, inofficial does.

Flatbuffers is the best candidate with similar data savings.

Especially the ability to access members of a message directly in place makes it ideal for memory-constrained devices: no need to create a second copy of the received values.

It also offers flexibility during development is also supported because FlatBuffers offers a schema-less (self-describing) version.

Unfortunately there is no official support in the nRF Connect SDK or Zephyr as of now.

Flatbuffers

google.github.io/flatbuffers

evolution of Protocol Buffers
access a buffer without parsing
smaller library, C implementation exists
wire format size a little bigger compared to Protocol Buffers
schema-less (self-describing) messages are supported

In the comparison on the previous slide we showed how using Protocol Buffers can dramatically reduce the transferred data size, while keeping a typed message.

The implementation of Protocol Buffers is however quite big (for a resource constrained device like the nRF9160), and no official encoder/decoder implementation exists for C, inofficial does.

Flatbuffers is the best candidate with similar data savings.

Especially the ability to access members of a message directly in place makes it ideal for memory-constrained devices: no need to create a second copy of the received values.

It also offers flexibility during development is also supported because FlatBuffers offers a schema-less (self-describing) version.

Unfortunately there is no official support in the nRF Connect SDK or Zephyr as of now.

CBOR

cbor.io

maps JSON to binary structures
zero configuration needed between exchanging parties
support for embedded devices: tinycbor

CBOR: example

GPS location message

{
  "v": {
    "lng": 10.414394,
    "lat": 63.430588,
    "acc": 17.127758,
    "alt": 221.639832,
    "spd": 0.320966,
    "hdg": 0
  },
  "ts": 1566042672382
}

A2 61 76 A6 63 6C 6E 67
FB 40 24 D4 2B 73 4B 51
37 63 6C 61 74 FB 40 4F
B7 1D 81 F1 06 68 63 61
63 63 FB 40 31 20 B4 BF
8F CD 68 63 61 6C 74 FB
40 6B B4 79 80 F5 5D E6
63 73 70 64 FB 3F D4 8A
B4 FA 48 30 1A 63 68 64
67 00 62 74 73 1B 00 00
01 6C 9F 6A CC FE

JSON
114 bytes
without newlines

CBOR
86 bytes (-24%)
source

Summary: Data protocols

Look into denser data protocols!
JSON is for Humans.

devices always™ send the same structure:
no need to transmit it
less data to send
- less money spent on data (grows linear with № of devices)
- less energy consumed = longer device lifetime
- lower chance of failed transmit

Transport protocols

MQTT+TLS
MQTT-SN+(D)TLS
CoAP/LWM2M+(D)TLS

MQTT+TLS

common protocol for “ecommerce” cloud vendors
(AWS, Azure, Google Cloud)

great fit for asynchronous, event oriented communication: MQTT is bidirectional pub/sub model
overhead:
- topic name in every MQTT package
  № of topics per device: ~3
- TLS handshake with AWS IoT broker: ~10 KB

MQTT-SN+(D)TLS

MQTT-SN 1.2 Specification

optimized version designed specifically IoT
supports UDP
use numeric IDs instead of strings for topic names
better offline support
not supported by cloud vendors: needs a (stateful) Gateway

CoAP/LWM2M+(D)TLS

common protocol in Telco clouds (Verizon’s Thingspace, AT&T’s IoT Platform)
typically used for device management (carrier library)
not supported by cloud vendors: needs a (stateful) Gateway.
Proof-of-concept AWS IoT-LwM2M Gateway: github.com/coderbyheart/leshan-aws

IoT connectivity summary

no silver bullet - multiple conflicting dimensions need to be considered
highly depends on use case scenario
ultra-low power relevant in all scenarios:
- data = money
- power consumption = money

What is serverless?

Serverless [architectures] are application designs that […] run in managed, ephemeral containers on a “Functions as a Service” (FaaS) platform.

Benefits

By using these ideas, […] such architectures remove much of the need for a traditional always-on server component.

[They] may benefit from significantly reduced operational cost, complexity, and engineering lead time, at a cost of increased reliance on vendor dependencies and comparatively immature supporting services.

Source: martinfowler.com/articles/serverless.html

Why I like serverless

Serverless computing allows me to focus on implementing the solution, and not spend time on maintaining the infrastructure needed to execute it.

or more practical

build globally scalable solutions with a small team
suprises are rare, allows me to go on vacation

Going serverless allows me and a rather small team of engineers to build a globally scalable software solution with a very high confidence in it’s scalability and an ease of mind during operations.

In the last years since I have been working fully serverless, I have not once experienced a surprising event that impacted our production system.

Yes, we experience issues which gradually become more serious over time, but in general it happens in a way that does not interfere with my vacation plans.

Serverless not only enables horizontal scalability, but allows to update each component of the solution individually: the code for a lambda function can be replaced without affecting other functions. This means no more waiting minutes for a monolithic container to come up again after a fix has been deployed.

Horizontal Scalablity

Serverless implementations depend on stateless, event-driven implementations.
This allows to process as many requests as needed, in parallel.
However, you have to deal with eventual consistency.

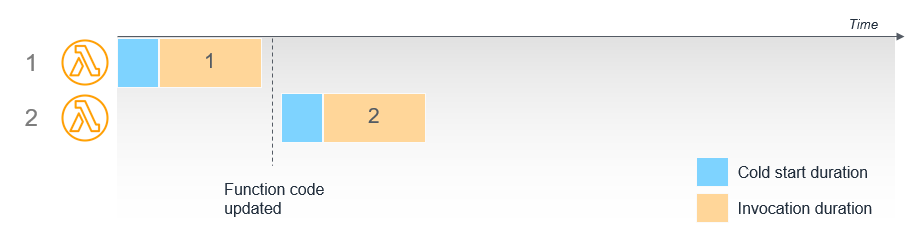

Updating individual components

Instead of restarting the instance,
I can update an individual function.

Downsides of serverless

Testability

Testing cloud-native solutions really is a challenge.

Infrastructure is part of the solution

More ceremony involved, defining infrastructure as code is now your job.

Serverless is usually closed source

Impossible to run it locally.

Mindset shift

Huge mindset shift from the classical application server model (LAMP, Tomcat, Rails), to a serverless, stateless, eventual consistent application development model.

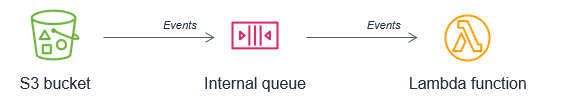

AWS Lambda explained

With Lambda, you can run code virtually with zero administration of the underlying infrastructure. You are responsible only for the code that you provide Lambda, and the configuration of how Lambda runs that code on your behalf.

AWS Lambda Hello World!

const AWS = require("aws-sdk");
const s3 = new AWS.S3();

exports.handler = async (event) => s3.listBuckets().promise();

AWS Lambda execution

const AWS = require("aws-sdk"); // Dependencies included in runtime
const s3 = new AWS.S3(); // Credentials provided by environment (based on role)

// event populated per request
exports.handler = async (event) => s3.listBuckets().promise();
// response is returned to invoker by runtime

Supported runtimes

Built-in

Node.js, Python, Ruby, Java, Go, .NET Core

Custom runtimes

Anything that runs in Amazon Linux 2.

When should I use Lambda?

Lambda is best suited for shorter, event-driven workloads, since Lambda functions run for up to 15 minutes per invocation.

Other limits

RAM: max 10 GB
payload (event): max 6 MB
source code size: max 25 MB / 10 GB container image
open files: 1,024
/tmp size: max 512 MB

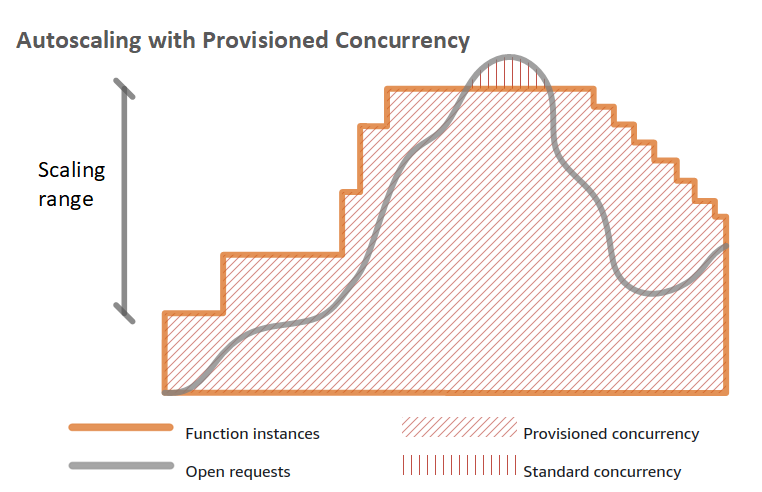

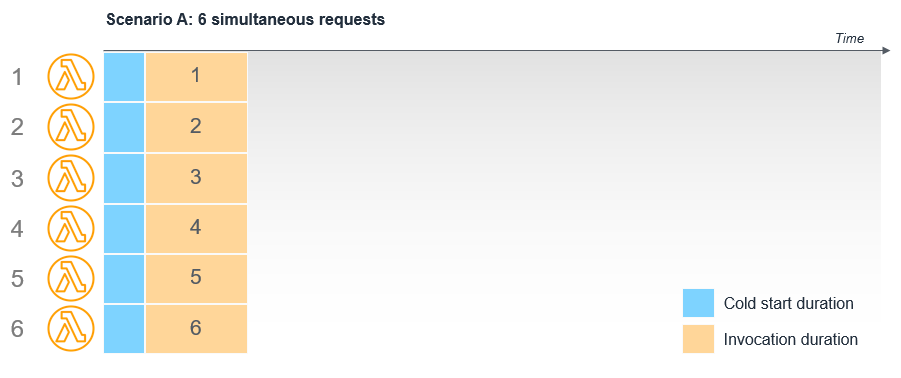

Scaling

first invokation (event) creates a function instance
stays active after response and waits to process additional events
more instances are created if multiple events need processing at the same time
instances are discared if number of events decreases

Lambda execution environments

Lambda provides function version level isolation:

reserved for a specific function version
- no reuse across function versions, functions, or AWS accounts
only one concurrent invocation at a time

This means a single function which may have two different versions would result in at least two unique execution environments.

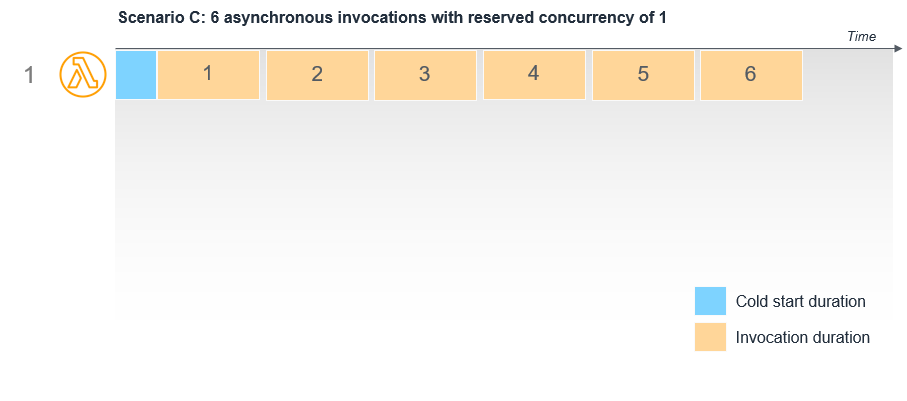

Each execution environment may only be used for one concurrent invocation at a time, and they may be reused across multiple invocations of the same function version for performance reasons. Depending on a number of factors (for example, rate of invocation, function configuration, and so on), one or more execution environments may exist for a given function version. With this approach, Lambda is able to provide function version level isolation for its customers.

Execution environments are continuously monitored and managed by Lambda, and they may be created or destroyed for any number of reasons including, but not limited to:

A new invoke arrives and no suitable execution environment exists
An internal runtime or Worker software deployment occurs
A new provisioned concurrency configuration is published
The lease time on the execution environment, or the Worker, is approaching or has exceeded max lifetime
Other internal workload rebalancing processes

Source: https://docs.aws.amazon.com/whitepapers/latest/security-overview-aws-lambda/lambda-executions.html

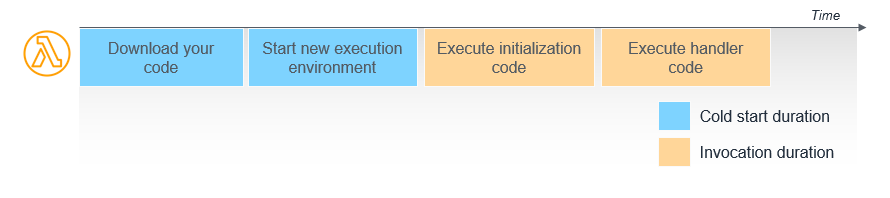

Execution environment

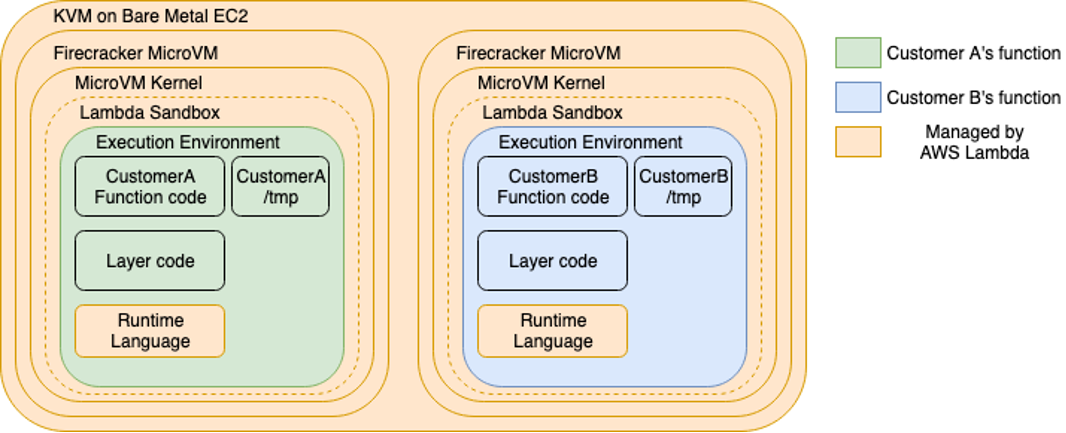

A diagram showing the isolation model for AWS Lambda Workers.

Execution environments are isolated from one another using several container-like technologies. Amazon open-sourced their virtualization technology, called Firecracker.

Lambda will create its execution environments on a fleet of Amazon EC2 instances called AWS Lambda Workers. Workers are bare metalEC2 Nitro instances which are launched and managed by Lambda in a separate isolated AWS account which is not visible to customers. Workers have one or more hardware-virtualized Micro Virtual Machines (MVM) created by Firecracker. Firecracker is an open-source Virtual Machine Monitor (VMM) that uses Linux’s Kernel-based Virtual Machine (KVM) to create and manage MVMs. It is purpose-built for creating and managing secure, multi-tenant container and function-based services that provide serverless operational models.

As a part of the shared responsibility model, Lambda is responsible for maintaining the security configuration, controls, and patching level of the Workers. The Lambda team uses Amazon Inspector to discover known potential security issues, as well as other custom security issue notification mechanisms and pre-disclosure lists, so that customers don’t need to manage the underlying security posture of their execution environment.

Workers have a maximum lease lifetime of 14 hours. When a Worker approaches maximum lease time, no further invocations are routed to it, MVMs are gracefully terminated, and the underlying Worker instance is terminated. Lambda continuously monitors and alarms on lifecycle activities of its fleet’s lifetime.

All data plane communications to workers are encrypted using Advanced Encryption Standard with Galois/Counter Mode (AES-GCM). Other than through data plane operations, customers cannot directly interact with a worker as it hosted in a network isolated Amazon VPC managed by Lambda in Lambda’s service accounts.

When a Worker needs to create a new execution environment, it is given time-limited authorization to access customer function artifacts. These artifacts are specifically optimized for Lambda’s execution environment and workers. Function code which is uploaded using the ZIP format is optimized once, and then is stored in an encrypted format using an AWS-managed key and AES-GCM.

Functions uploaded to Lambda using the container image format are also optimized. The container image is first downloaded from its original source, optimized into distinct chunks, and then stored as encrypted chunks using an authenticated convergent encryption method which uses a combination of AES-CTR, AES-GCM, and a SHA-256 MAC. The convergent encryption method allows Lambda to securely deduplicate encrypted chunks. All keys required to decrypt customer data is protected using customer-managed AWS KMS Customer Master Key (CMK). CMK usage by the Lambda service is available to customers in AWS CloudTrail logs for tracking and auditing.

Source: https://docs.aws.amazon.com/whitepapers/latest/security-overview-aws-lambda/lambda-executions.html

See also: https://docs.aws.amazon.com/whitepapers/latest/security-overview-aws-lambda/lambda-isolation-technologies.html

Execution environment lifecycle

download the code for the function from S3 or ECR
create environment with the memory, runtime, and configuration specified
run any initialization code outside of the event handler
run the handler code.

When the Lambda service receives a request to run a function via the Lambda API, the service first prepares an execution environment. During this step, the service downloads the code for the function, which is stored in an internal S3 bucket (or in Amazon ECR if the function uses container packaging). It then creates an environment with the memory, runtime, and configuration specified. Once complete, Lambda runs any initialization code outside of the event handler before finally running the handler code.

In this diagram, the first two steps of setting up the environment and the code are frequently referred to as a “cold start”. You are not charged for the time it takes for Lambda to prepare the function but it does add latency to the overall invocation duration.

After the execution completes, the execution environment is frozen. To improve resource management and performance, the Lambda service retains the execution environment for a non-deterministic period of time. During this time, if another request arrives for the same function, the service may reuse the environment. This second request typically finishes more quickly, since the execution environment already exists and it’s not necessary to download the code and run the initialization code. This is called a “warm start”.

Source: https://docs.aws.amazon.com/lambda/latest/operatorguide/execution-environments.html

Hitting the cold start zone

Lambda service retains the execution environment for a non-deterministic period of time.

The Lambda service retains the execution environment instead of destroying it immediately after execution. There are also operational factors in the Lambda services that influence the retention time.

While execution environment reuse is useful, you should not depend on this for performance optimization. Lambda is a high availability service that manages execution across multiple Availability Zones in an AWS Region. Depending upon aggregate customer traffic, the service may load balance a function at any time. As a result, it’s possible for a function to be invoked twice in a short period of time, and both executions experience a cold-start due to this load rebalancing activity.

Additionally, in the event that a Lambda function scales up due to traffic, each additional concurrent invocation of the function requires a new execution environment. This means that each concurrent execution experiences a cold-start, even as existing concurrent functions may already be warm.

Finally, anytime you update the code in a Lambda function or change the functional configuration, the next invocation results in a cold start. Any existing environments running a previous version of the “Latest” alias are reaped to ensure that only the new version of the code is used.

Cold start scenarios

6 simultaneous requests

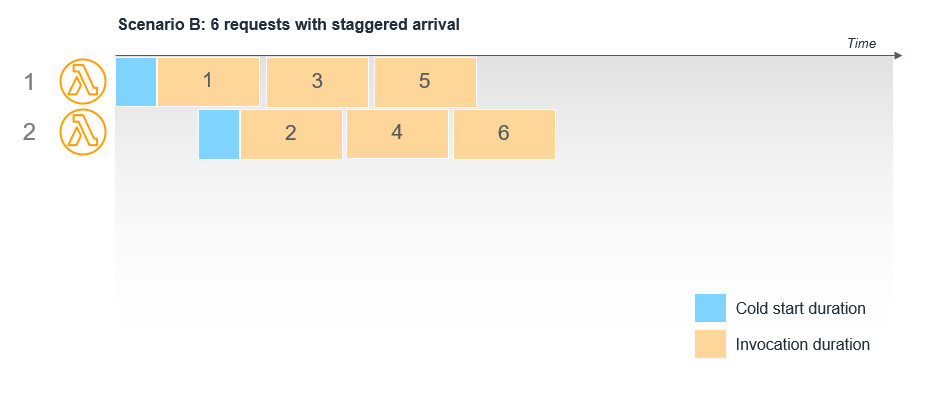

6 asynchronous inviations with reserved concurrency 1

6 requests with staggered arrival

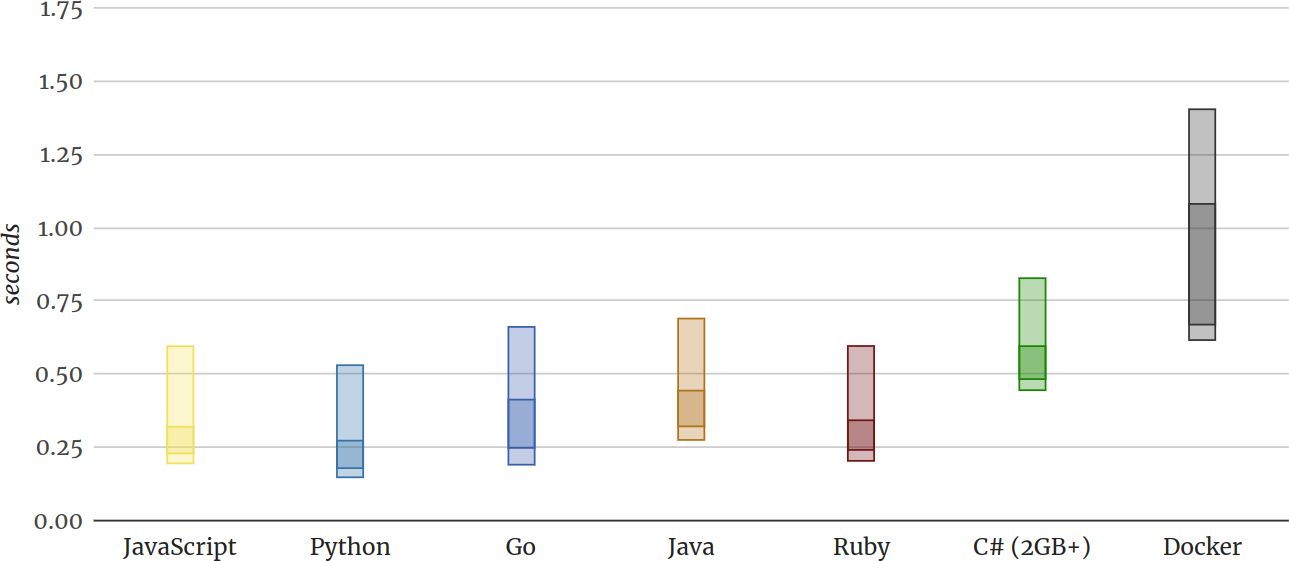

Cold start times

typically <1% of invocations in production deployments

Cold start mitigation

reserved concurrency (keep n instances alive all the time)
reduce cold start time:
- reduce deployment artifact size
- chose leaner execution environment
- give more resources to Lambda (RAM)
- reduce start up time (e.g. DB connections)
- reduce processing run time

IoT <3 serverless

No world

Many, many devices, that don’t share global state.

18+ billion IoT devices this year

Needs to scale to billions of devices, connections, message per day.

Data for thousands of use cases

Many different operations with different business needs (processing) on small datasets, suits serverless microservice model very well.

Architecture Example: store and retrieve temperature data

PDF version - Miro Board

AWS implementation

Learning resources

Book recommendations

Cellular IoT development

Best practices for cellular IoT development (Whitepaper)
nRF Connect SDK fundamentals (Online course)

Thank you & happy connecting!

Please share your feedback!

Markus.Tacker@NordicSemi.no
@coderbyheart

Latest version:
bit.ly/awsiotarch

We are hiring!
nordicsemi.com/jobs
Trondheim · Oslo · 20+ more locations
